16 Machine learning algorithms for image time series
Configurations to run this chapter
# load "pysits" library
from pysits import *
from pathlib import Path
# set tempdir if it does not exist
tempdir_py = Path.home() / "sitsbook/tempdir/Python/cl_machinelearning"
tempdir_py.mkdir(parents=True, exist_ok=True)16.1 Data used in this chapter
The following examples show how to train machine learning methods and apply them to classify a single time series. We use the set samples_matogrosso_mod13q1, containing time series samples from the Brazilian Mato Grosso state obtained from the MODIS MOD13Q1 product. It has 1,837 samples and seven classes (Cerrado, Forest, Pasture, Soy_Corn, Soy_Cotton, Soy_Fallow, Soy_Millet). Each time series covers 12 months (23 data points) with six bands (NDVI, EVI, BLUE, RED, NIR, MIR). The samples are arranged along an agricultural year, starting in September and ending in August. They have been collected in different years to capture responses of the same land use and land cover classes under different climatological conditions. The dataset was used in the paper “Big Earth observation time series analysis for monitoring Brazilian agriculture” [1], and is available in the R package sitsdata. To illustrate the outcome of each algorithm, we show an example of a multi-temporal classification of a pixel in the Mato Grosso region, from the period 2000 to 2015.
The training data to be used in the examples is available on Hugging Face and show be retrieved before running the ML/DL algorithms, as shown below.
# Get the samples from Hugging Face
samples_matogrosso_mod13q1 <- sits_from_hf(
repo = "e-sensing/samples_book",
file = "samples_matogrosso_mod13q1.parquet",
type = "dataset"
)
# Get data point to classify
point_mt_mod13q1 <- sits_from_hf(
repo = "e-sensing/samples_book",
file = "point_mt_mod13q1.parquet",
type = "dataset"
)# Get the samples from Hugging Face
samples_matogrosso_mod13q1 = sits_from_hf(
repo = "e-sensing/samples_book",
file = "samples_matogrosso_mod13q1.parquet",
type = "dataset"
)
# Get data point to classify
point_mt_mod13q1 = sits_from_hf(
repo = "e-sensing/samples_book",
file = "point_mt_mod13q1.parquet",
type = "dataset"
)16.2 Common interface to machine learning and deep learning models
The sits_train() function provides a standard interface to all machine learning models. This function takes two mandatory parameters:
| Parameter | Meaning |
|---|---|
samples |
the training data. |
ml_method |
the ML algorithm. |
After the model is estimated, it can classify individual time series or data cubes with sits_classify(). In what follows, we show how to apply each method to classify a single time series. Then, in Chapter Image classification in data cubes, we discuss how to classify data cubes.
Since sits is aimed at remote sensing users who are not machine learning experts, it provides a set of default values for all classification models. These settings have been chosen based on testing by the authors. Nevertheless, users can control all parameters for each model. Novice users can rely on the default values, while experienced ones can fine-tune model parameters to meet their needs. Model tuning is discussed at the end of this chapter.
When a set of time series organized as tibble is taken as input to the classifier, the result is the same tibble with one additional column (predicted), which contains the information on the labels assigned for each interval. The results can be shown in text format using the function sits_show_prediction() or graphically using plot().
16.3 Random Forest
Random Forest is a machine learning algorithm that uses an ensemble learning method for classification tasks. The algorithm consists of multiple decision trees, each trained on a different subset of the training data and with a different subset of features. To make a prediction, each decision tree in the forest independently classifies the input data. The final prediction is made based on the majority vote of all the decision trees. The randomness in the algorithm comes from the random subsets of data and features used to train each decision tree, which helps to reduce overfitting and improve the accuracy of the model. This classifier measures the importance of each feature in the classification task, which can be helpful in feature selection and data visualization. For an in-depth discussion of the robustness of Random Forest for satellite image time series classification, please see Pelletier et al. [2].
sits provides sits_rfor(), which uses the R randomForest package [3]; its main parameter is num_trees, which is the number of trees to grow with a default value of 100. The model can be visualized using plot().
set.seed(290356)
# Train the Mato Grosso samples with Random Forest algorithm
rfor_model <- sits_train(
samples = samples_matogrosso_mod13q1,
ml_method = sits_rfor(num_trees = 100))
# Plot the most important variables of the model
plot(rfor_model)
r_set_seed(290356)
# Train the Mato Grosso samples with Random Forest algorithm
rfor_model = sits_train(
samples = samples_matogrosso_mod13q1,
ml_method = sits_rfor(num_trees = 100))
# Plot the most important variables of the model
plot(rfor_model)

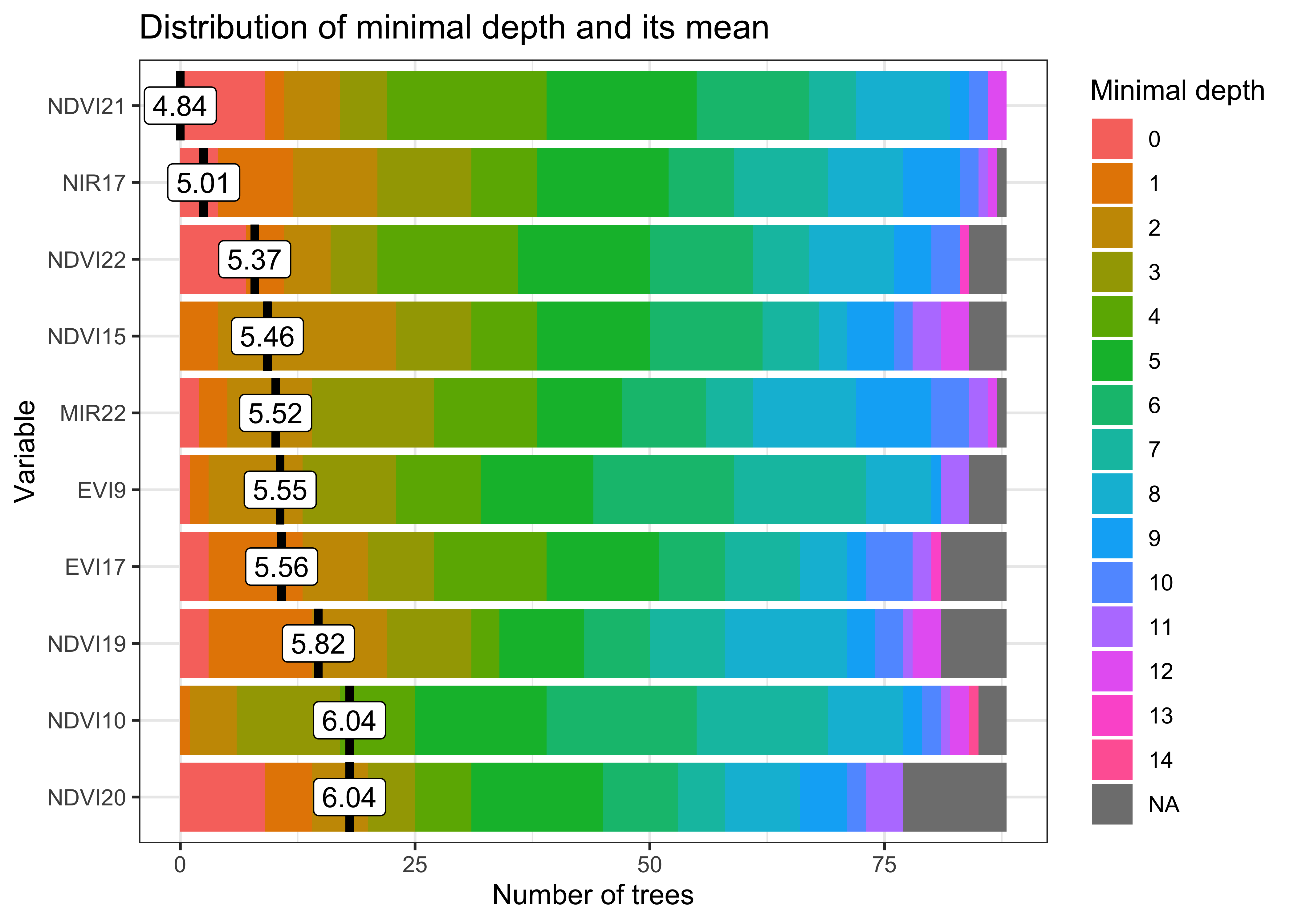

The model plot shows the most important explanatory variables, which are the NDVI index on dates 21 (2007-07-28) and 22 (2007-08-13) and the NIR (near infrared) band and EVI index on date 17 (2007-05-25). The NDVI value at the end of July and beginning of August differentiates natural classes such as Forest and agricultural classes. NDVI values for Forest will have high values even in late July/early August during the dry season. By contrast, the crops will have been harvested by late July, leading to low NDVI values associated with bare soil. The NIR and EVI values at the end of May capture the growth of the second crop for double cropping classes. In general, the Random Forest algorithm will do a good job of separating natural land covers from temporary agriculture crops.
# Classify using Random Forest model and plot the result
point_class <- sits_classify(
data = point_mt_mod13q1,
ml_model = rfor_model)
plot(point_class, bands = c("NDVI", "EVI"))
# Classify using Random Forest model and plot the result
point_class = sits_classify(
data = point_mt_mod13q1,
ml_model = rfor_model)
plot(point_class, bands = ("NDVI", "EVI"))

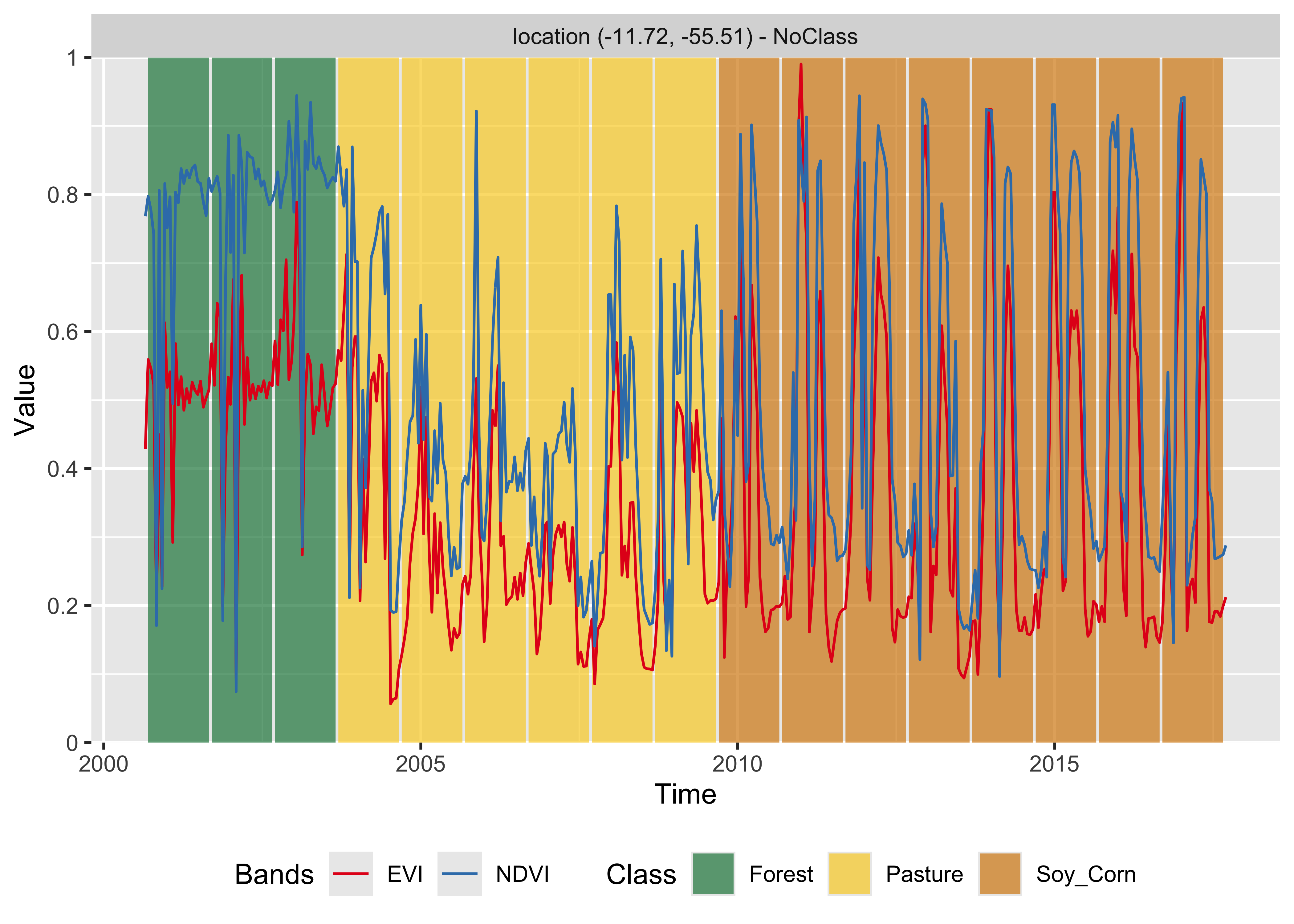

The result shows that the area started as a forest in 2000, was deforested from 2004 to 2005, used as pasture from 2006 to 2007, and for double-cropping agriculture from 2009 onwards. This behavior is consistent with expert evaluation of land change process in this region of Amazonia.
Random Forest is robust to outliers and can deal with irrelevant inputs [4]. The method tends to overemphasize some variables because its performance tends to stabilize after part of the trees is grown [4]. In cases where abrupt change occurs, such as deforestation mapping, Random Forest (if properly trained) will emphasize the temporal instances and bands that capture such quick change. Before using Random Forest, it is recommended that users balance their training samples as explained in “Reducing imbalances in training samples”.
16.4 Support vector machine
The support vector machine (SVM) classifier is a generalization of a linear classifier that finds an optimal separation hyperplane which minimizes misclassification [5]. Since a set of samples with \(n\) features defines an n-dimensional feature space, hyperplanes are linear \({(n-1)}\)-dimensional boundaries that define linear partitions in that space. If the classes are linearly separable on the feature space, there will be an optimal solution defined by the maximal margin hyperplane, which is the separating hyperplane that is farthest from the training observations [6]. The maximal margin is computed as the smallest distance from the observations to the hyperplane. The solution for the hyperplane coefficients depends only on the samples that define the maximum margin criteria, the so-called support vectors.
For data that is not linearly separable, SVM provides kernel functions that map the original feature space into a higher dimensional space. Despite having a linear boundary on the enlarged feature space, the new classification model generally translates its hyperplane to a nonlinear boundary in the original attribute space. Kernels are an efficient computational strategy to produce nonlinear boundaries in the input attribute space; thus, they improve training-class separation. SVM is one of the most widely used algorithms in machine learning applications and has been applied to classify remote sensing data [7].
In sits, SVM is implemented as a wrapper of e1071 R package that uses the LIBSVM implementation [8]. The sits package adopts the one-against-one method for multiclass classification. For a \(q\) class problem, this method creates \({q(q-1)/2}\) SVM binary models, one for each class pair combination, testing any unknown input vectors throughout all those models. A voting scheme computes the overall result.
The example below shows how to apply SVM to classify time series using default values. The main parameters are:
| Parameter | Meaning |
|---|---|
kernel |
controls whether to use a nonlinear transformation (default is radial). |
cost |
measures the punishment for wrongly-classified samples (default is 10). |
cross |
sets the value of the k-fold cross validation (default is 10). |
set.seed(290356)
# Train an SVM model
svm_model <- sits_train(
samples = samples_matogrosso_mod13q1,
ml_method = sits_svm())
# Classify using the SVM model and plot the result
point_class <- sits_classify(
data = point_mt_mod13q1,
ml_model = svm_model)
# Plot the result
plot(point_class, bands = c("NDVI", "EVI"))
r_set_seed(290356)
# Train an SVM model
svm_model = sits_train(
samples = samples_matogrosso_mod13q1,
ml_method = sits_svm())
# Classify using the SVM model and plot the result
point_class = sits_classify(
data = point_mt_mod13q1,
ml_model = svm_model)
# Plot the result
plot(point_class, bands = ("NDVI", "EVI"))

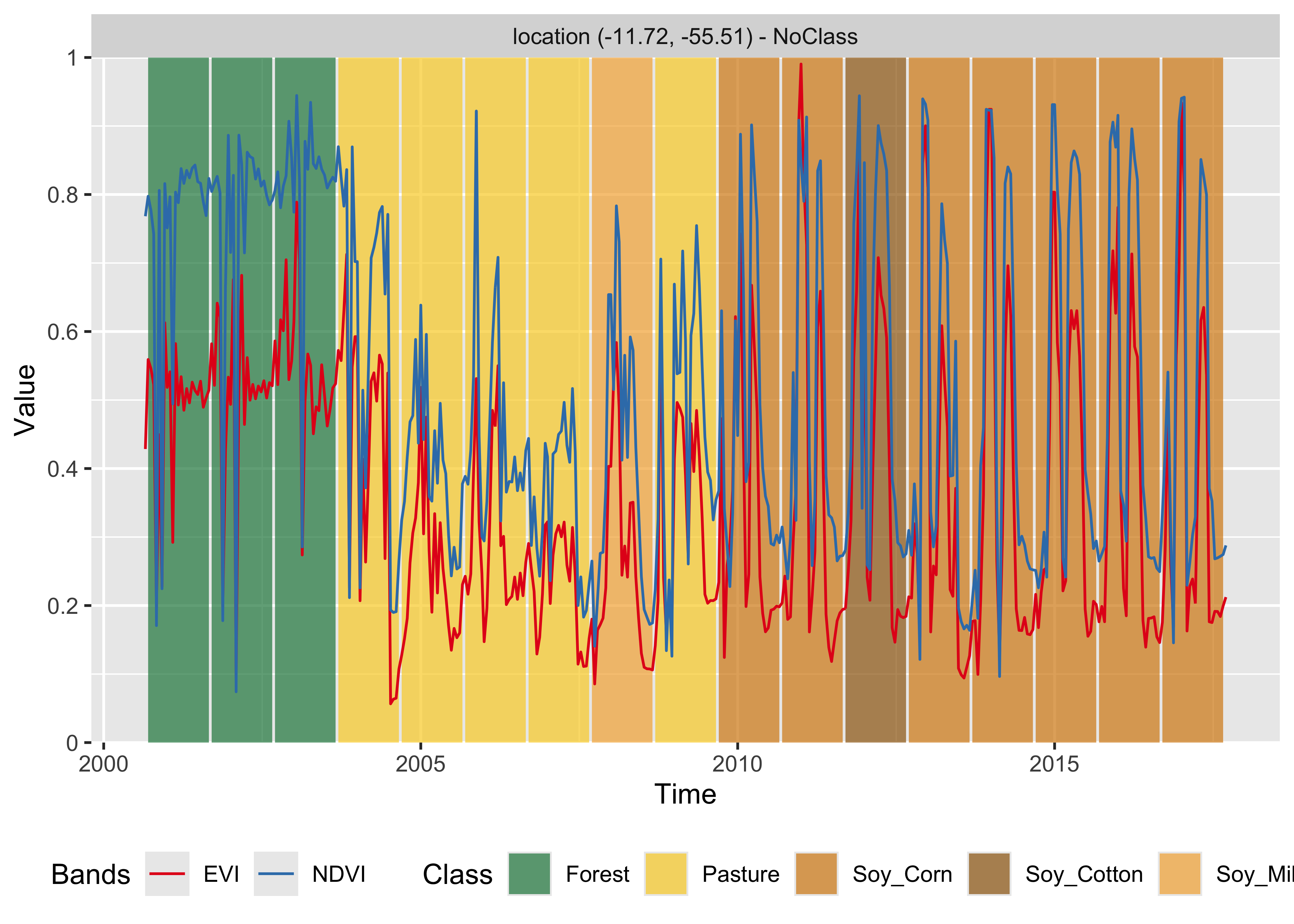

The SVM classifier is less stable and less robust to outliers than the Random Forest method. In this example, it tends to misclassify some of the data. In 2008, it is likely that the correct land class was still Pasture rather than Soy_Millet as produced by the algorithm, while the Soy_Cotton class in 2012 is also inconsistent with the previous and latter classification of Soy_Corn.
16.5 Extreme gradient boosting
XGBoost (eXtreme Gradient Boosting) [9] is an implementation of gradient boosted decision trees designed for speed and performance. It is an ensemble learning method, meaning it combines the predictions from multiple models to produce a final prediction. XGBoost builds trees one at a time, where each new tree helps to correct errors made by previously trained trees. Each tree builds a new model to correct the errors made by previous models. Using gradient descent, the algorithm iteratively adjusts the predictions of each tree by focusing on instances where previous trees made errors. Models are added sequentially until no further improvements can be made.
Although Random Forest and boosting use trees for classification, there are significant differences. While Random Forest builds multiple decision trees in parallel and merges them together later, XGBoost builds trees one at a time. In XGBoost, each new tree helps to correct errors made by previously trained trees. XGBoost is often preferred for its speed and performance, particularly on large datasets, and is well-suited for problems where precision is paramount. Random Forest, on the other hand, is simpler to implement, more interpretable, and can be more robust to overfitting, making it a good choice for general-purpose applications.
The boosting method starts from a weak predictor and then improves performance sequentially by fitting a better model at each iteration. It fits a simple classifier to the training data and uses the residuals of the fit to build a predictor. Typically, the base classifier is a regression tree. Although Random Forest and boosting use trees for classification, there are significant differences. The performance of Random Forest generally increases with the number of trees until it becomes stable. Boosting trees apply finer divisions over previous results to improve performance [4]. Some recent papers show that it outperforms Random Forest for remote sensing image classification [10]. However, this result is not generalizable since the quality of the training dataset controls actual performance.
In sits, the XGBoost method is implemented by the sits_xgboost() function, based on XGBoost R package, and has five hyperparameters that require tuning. The sits_xgboost() function takes the user choices as input to a cross-validation to determine suitable values for the predictor. Its parameters are:
| Parameter | Meaning |
|---|---|
eta |
learning rate, which varies from 0.0 to 1.0 and should be kept small (default is 0.3) to avoid overfitting. |
gamma |
minimum loss value, which specifies the minimum reduction required to make a split (default is 0). Increasing it makes the algorithm more conservative. |
max_depth |
maximum depth of the trees. Increasing this value will make the model more complex and likely to overfit (default is 6). |
subsample |
controls the percentage of samples supplied to a tree. Its default is 1 (maximum). Setting it to lower values means that xgboost randomly collects only part of the data instances to grow trees, thus preventing overfitting. |
nrounds |
maximum number of boosting iterations. Its default is 100, which has proven to be enough in most cases. |
verbose |
boolean to provide information on the convergence of the algorithm (default is FALSE). |
In general, the results using the extreme gradient boosting algorithm are similar to the Random Forest method.
set.seed(290356)
# Train using XGBoost
xgb_model <- sits_train(
samples = samples_matogrosso_mod13q1,
ml_method = sits_xgboost(verbose = FALSE))
# Classify using SVM model and plot the result
point_class_xgb <- sits_classify(
data = point_mt_mod13q1,
ml_model = xgb_model)
# View classification

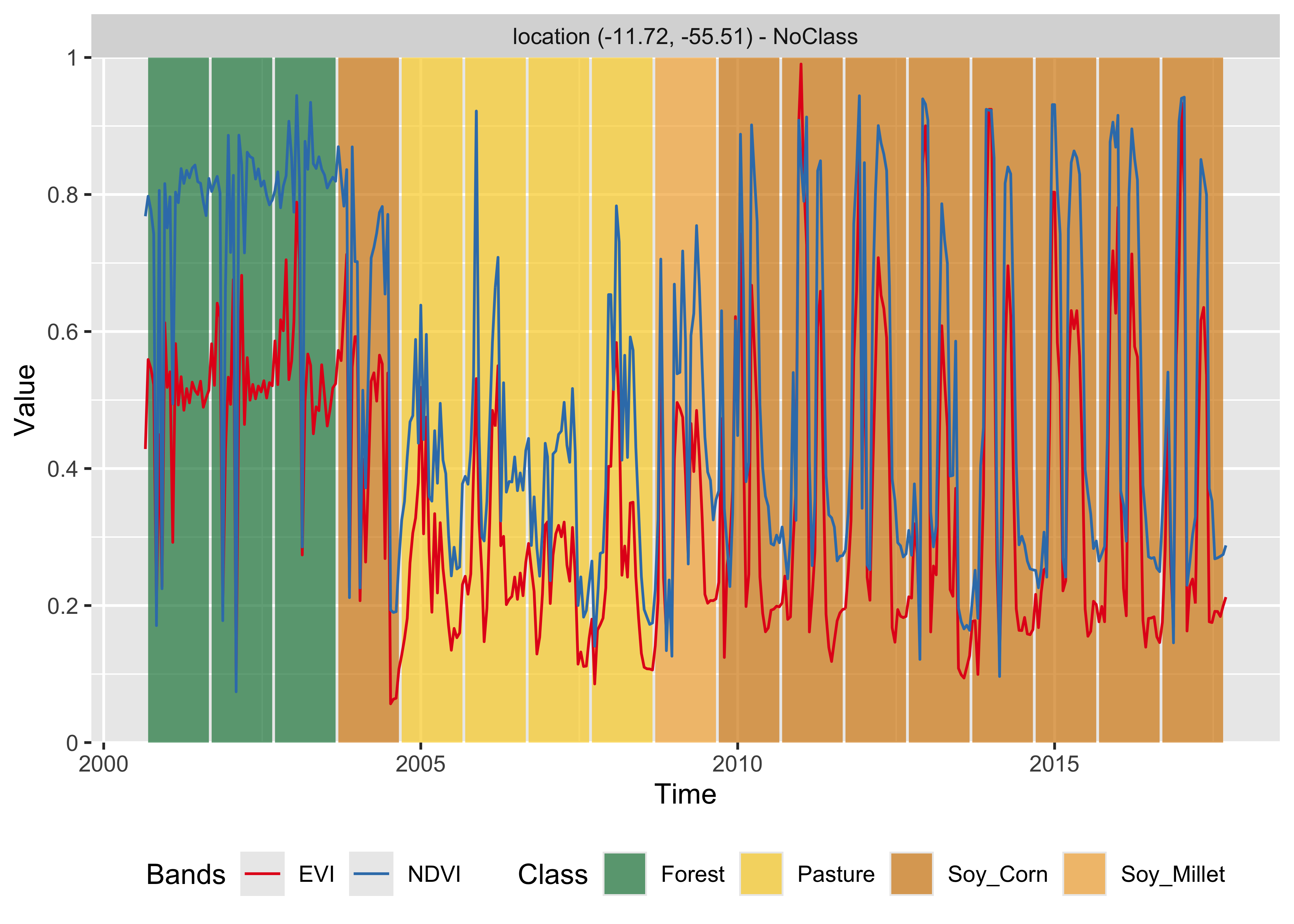

plot(point_class_xgb, bands = c("NDVI", "EVI"))
r_set_seed(290356)
# Train using XGBoost
xgb_model = sits_train(
samples = samples_matogrosso_mod13q1,
ml_method = sits_xgboost(verbose = False))
# Classify using SVM model and plot the result
point_class_xgb = sits_classify(
data = point_mt_mod13q1,
ml_model = xgb_model)
# View classification
plot(point_class_xgb, bands = ("NDVI", "EVI"))
16.6 Deep learning algorithms
All deep learning methods in sits are built on the torch R package, which uses the Facebook torch C++ library as its back-end; the Python API (pysits) exposes the same models, so the code is equivalent in both languages. Whatever the architecture, every model is trained with sits_train() and applied with sits_classify(). Users can therefore switch between sits_mlp(), sits_tempcnn(), sits_resnet(), sits_lstm_fcn(), and sits_lighttae() without changing the surrounding workflow. The models run on CPUs using the same parallel-processing machinery as the traditional classifiers, and they automatically use a CUDA-compatible NVIDIA GPU (or an Apple MPS device) when one is available; at classification time, the gpu_memory and batch_size parameters control how the data is fed to the GPU. As with all sits methods, sensible default values are provided, and setting a random seed before training makes the results reproducible.
The deep learning models also share a common set of training hyperparameters, which is why their function signatures are so similar. Learning is driven by an optimizer (optimizer) which indicates the gradient descent algorithm to be used. These methods aim to maximize an objective function by updating the parameters in the opposite direction of the gradient of the objective function [11]. The Adamw optimizer provides a good baseline and reliable performance for general deep learning applications [12]. Its behavior is controlled through opt_hparams — the learning rate lr, the numerical-stability term eps, and the L2 regularization strength weight_decay. Training runs for a number of epochs over mini-batches of size batch_size and combines several mechanisms to reduce overfitting and improve convergence: the “relu” activation function, dropout, a learning-rate schedule set by lr_decay_epochs and lr_decay_rate, and early stopping governed by patience and min_delta. The fraction of samples set aside by validation_split (we recommend at least 20%) is used to monitor accuracy during training. Since there is no universally best configuration for satellite image time series, we suggest starting from the default values and tuning these parameters when needed, as discussed in the chapter on model tuning.
| Parameter | Meaning |
|---|---|
epochs |
maximum number of iterations to train the model |
batch_size |
number of samples per epoch |
optimizer |
selects the optimizer function to be used, which by default is optim_adamw, which is considered as a stable and reliable optimization function |
opt_hparams |
List of hyperparameters for the optimizer, where lr is the learning rate of the optimizer, eps is a term added to improve numerical stability, and weight_decay defines the strength of the L2 regularization method; it defines the penalty imposed to large weights in a neural network, to try to force weights to shrink toward zero during training |
lr_decay_epochs |
decay rate of learning rate to improve convergence |
lr_decay_rate |
reduction factor of the learning rate after each epoch |
patience |
number of epochs without improvement after which the training stops |
min_delta |
minimum improvement in loss function to reset the patience counter |
validation_split |
size of the test set relative to the full dataset. We recommend setting aside at least 20% of the samples for validation |
verbose |
provide detailed information on the performance of the algorithm |
16.7 Deep learning using multilayer perceptron

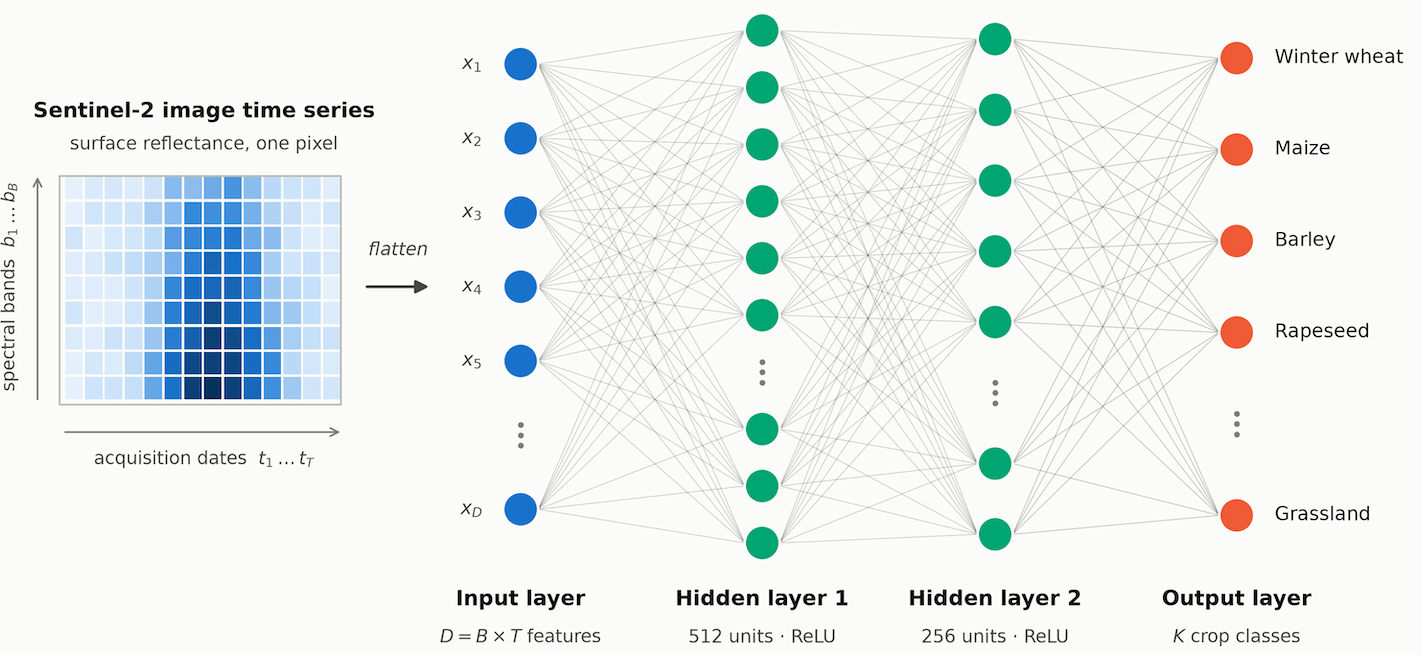

The simplest deep learning method is multilayer perceptron (MLP), which are feedforward artificial neural networks. An MLP consists of three kinds of nodes: an input layer, a set of hidden layers, and an output layer. The input layer has the same dimension as the number of features in the dataset. The hidden layers attempt to approximate the best classification function. The output layer decides which class should be assigned to the input. In an MLP, all inputs are treated equally at first; based on iterative matching of training and test data, the backpropagation technique feeds information back to the initial layers to identify the most suitable combination of inputs that produces the best output.
In sits, MLP models can be built using sits_mlp(). Since there is no established model for generic classification of satellite image time series, designing MLP models requires parameter customization. The most important decisions are the number of layers in the model and the number of neurons per layer. These values are set by the layers parameter, which is a list of integer values. The size of the list is the number of layers, and each element indicates the number of nodes per layer.
The choice of the number of layers depends on the inherent separability of the dataset to be classified. For datasets where the classes have different signatures, a shallow model (with three layers) may provide appropriate responses. More complex situations require models of deeper hierarchy. Models with many hidden layers may take a long time to train and may not converge. We suggest starting with three layers and test different options for the number of neurons per layer before increasing the number of layers. In our experience, using three to five layers is a reasonable compromise if the training data has a good quality. Further increase in the number of layers will not improve the model.
MLP models also need to include the activation function. The activation function of a node defines the output of that node given an input or set of inputs. Following standard practices [13], we use the relu activation function. Another relevant parameter is the list of dropout rates (dropout_rates). Dropout is a technique for randomly dropping units from the neural network during training [14]. By randomly discarding some neurons, dropout reduces overfitting. Since a cascade of neural nets aims to improve learning as more data is acquired, discarding some neurons may seem like a waste of resources. In practice, dropout prevents an early convergence to a local minimum [13]. We suggest users experiment with different dropout rates, starting from small values (10-30%) and increasing as required.
The following example shows how to use sits_mlp(). The default specific parameters have been chosen based on a modified version of [15], which proposes using multilayer perceptron as a baseline for time series classification. These parameters are: (a) Three layers with 512 neurons each, specified by the parameter layers; (b) dropout rates of 40%, 30%, and 20% for the layers. To simplify the output, the verbose option has been turned off. After the model has been generated, we plot its training history.
| Parameter | Meaning |
|---|---|
layers |
vector with sizes of neurons |
dropout_rates |
dropout rate per layer |
# Set a seed for reproducibility
set.seed(290356)
# Train using an MLP model
# This is an example of how to set parameters
# First-time users should test default options first
mlp_model <- sits_train(
samples = samples_matogrosso_mod13q1,
ml_method = sits_mlp(
optimizer = torch::optim_adamw,
layers = c(512, 512, 512),
dropout_rates = c(0.40, 0.30, 0.20),
epochs = 80,
batch_size = 64,
verbose = FALSE,
validation_split = 0.2)
)
# Show training evolution

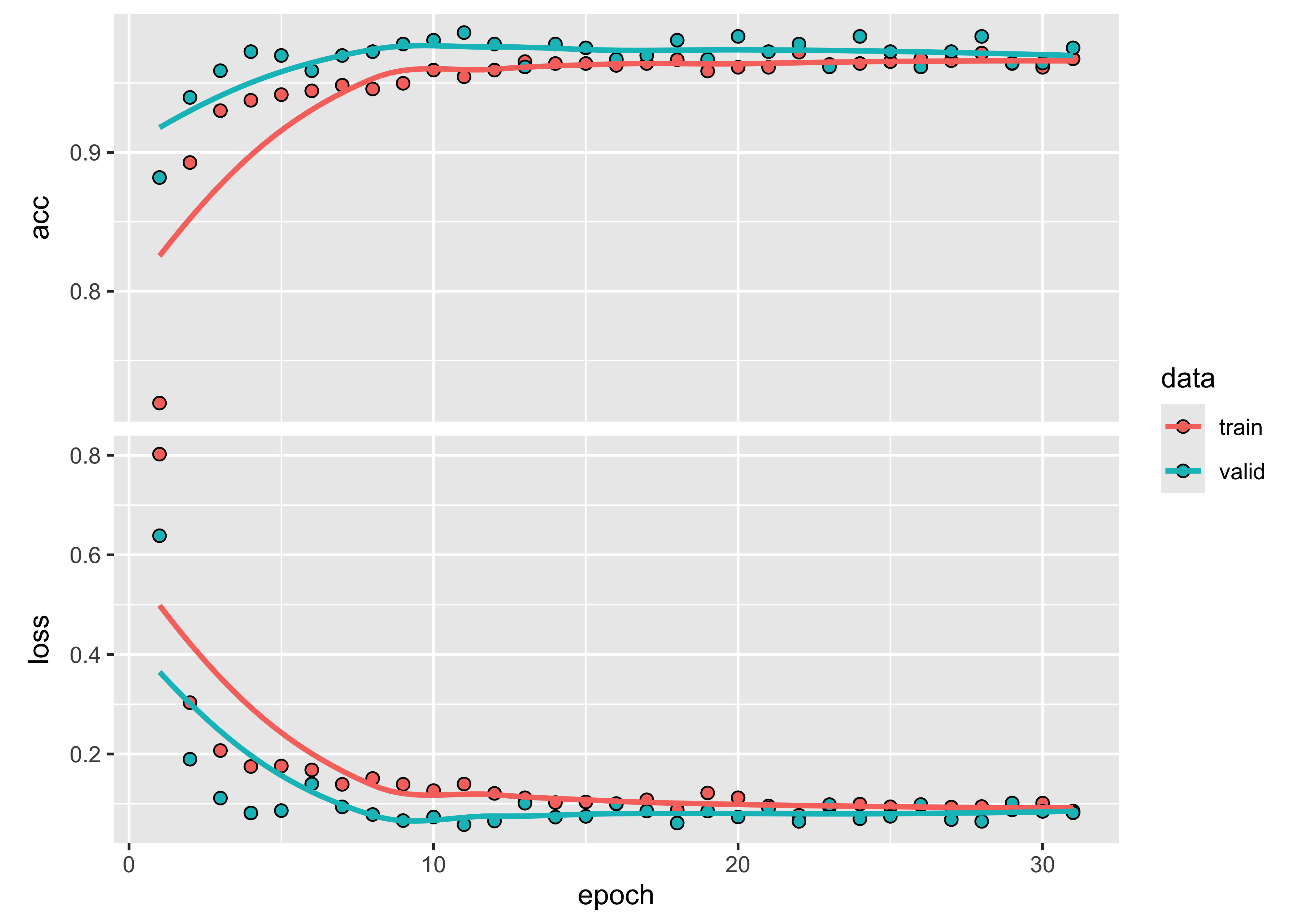

plot(mlp_model)
# Set a seed for reproducibility
r_set_seed(290356)
# Train using an MLP model
# This is an example of how to set parameters
# First-time users should test default options first
mlp_model = sits_train(
samples = samples_matogrosso_mod13q1,
ml_method = sits_mlp(
optimizer = "torch::optim_adamw",
layers = (512, 512, 512),
dropout_rates = (0.40, 0.30, 0.20),
epochs = 80,
batch_size = 64,
verbose = False,
validation_split = 0.2))
# Show training evolution
plot(mlp_model)
Then, we classify a 16-year time series using the multilayer perceptron model.
# Classify using MLP model and plot the result
point_class <- sits_classify(point_mt_mod13q1, mlp_model)
plot(point_class, bands = c("NDVI", "EVI"))
# Classify using MLP model
point_class = sits_classify(point_mt_mod13q1, mlp_model)
# Plot
plot(point_class, bands = ("NDVI", "EVI"))
In theory, an MLP can capture more subtle changes than Random Forest and XGBoost. In this specific case, the result is similar to theirs. Although the model mixes the Soy_Corn and Soy_Millet classes, the distinction between their temporal signatures is quite subtle. Also it suggests the need to improve the number of samples. A second issue concerns the error in year 2004, where a deforestation event has been misclassified as Soy_Cotton. This error derives from the lack of an explicit Deforestation class in the labels used for training. The plot shows that the time series on year 2004 starts from a high NDVI value, corresponding to class Forest, which has a significant decrease during the year due to tree removal. In this example, the MLP model shows an increase in sensitivity compared to previous models. We recommend comparing different configurations since the MLP model is sensitive to changes in its parameters.
16.8 Temporal Convolutional Neural Network (TempCNN)
Convolutional neural networks (CNN) are deep learning methods that apply convolution filters (sliding windows) to the input data sequentially. The Temporal Convolutional Neural Network (TempCNN) is a neural network architecture specifically designed to process sequential data such as time series. In the case of time series, a 1D CNN applies a moving temporal window to the time series to produce another time series as the result of the convolution.
The TempCNN architecture for satellite image time series classification is proposed by Pelletier et al. [16]. It has three 1D convolutional layers and a final softmax layer for classification. The authors combine different methods to avoid overfitting and reduce the vanishing gradient effect, including dropout, regularization, and batch normalization. In the TempCNN reference paper [16], the authors favorably compare their model with the Recurrent Neural Network proposed by Russwurm and Körner [17]. Figure 16.11 shows the architecture of the TempCNN model. TempCNN applies one-dimensional convolutions on the input sequence to capture temporal dependencies, allowing the network to learn long-term dependencies in the input sequence. Each layer of the model captures temporal dependencies at a different scale. Due to its multi-scale approach, TempCNN can capture complex temporal patterns in the data and produce accurate predictions.
The function sits_tempcnn() implements the model, with the following specific parameters:
| Parameter | Meaning |
|---|---|
cnn_layers |
controls the number of 1D-CNN layers and the size of the filters applied at each layer. Default values are three CNNs with 64 units. |
cnn_kernels |
size of the convolution kernels; the default is kernels of size 3. Activation for all 1D-CNN layers uses the “relu” function. |
cnn_dropout_rates |
dropout rates for each 1D-CNN layer. The default values are 20% for each layer. |
# Set seed for
set.seed(290356)
library(torch)
# Train using tempCNN
tempcnn_model <- sits_train(
samples_matogrosso_mod13q1,
sits_tempcnn(
cnn_layers = c(64, 64, 64),
cnn_kernels = c(3, 3, 3),
cnn_dropout_rates = c(0.2, 0.2, 0.2),
optimizer = torch::optim_adamw,
opt_hparams = list(lr = 5e-04,
eps = 1e-08,
weight_decay = 1e-06),
lr_decay_epochs = 1,
lr_decay_rate = 0.95,
patience = 20,
epochs = 150,
batch_size = 64,
validation_split = 0.2,
verbose = FALSE))
# Show training evolution

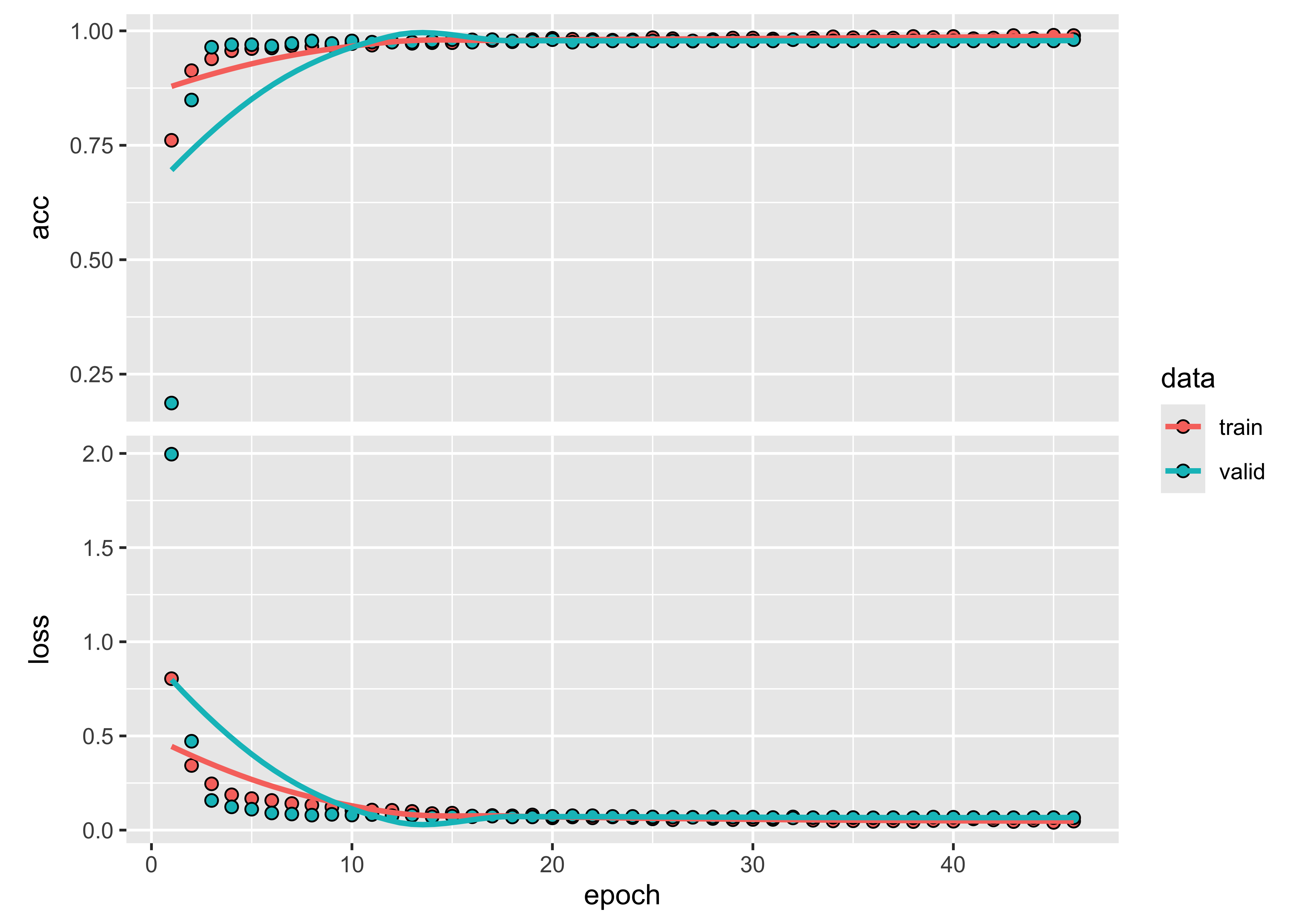

plot(tempcnn_model)
r_set_seed(290356)
# Train using tempCNN
tempcnn_model = sits_train(
samples_matogrosso_mod13q1,
sits_tempcnn(
cnn_layers = (64, 64, 64),
cnn_kernels = (3, 3, 3),
cnn_dropout_rates = (0.2, 0.2, 0.2),
optimizer = "torch::optim_adamw",
opt_hparams = dict(lr = 5e-04,
eps = 1e-08,
weight_decay = 1e-06),
lr_decay_epochs = 1,
lr_decay_rate = 0.95,
patience = 20,
epochs = 150,
batch_size = 64,
validation_split = 0.2,
verbose = False))
# Show training evolution
plot(tempcnn_model)
Using the TempCNN model, we classify a 16-year time series.
# Classify using TempCNN model and plot the result
point_class <- sits_classify(point_mt_mod13q1, tempcnn_model)

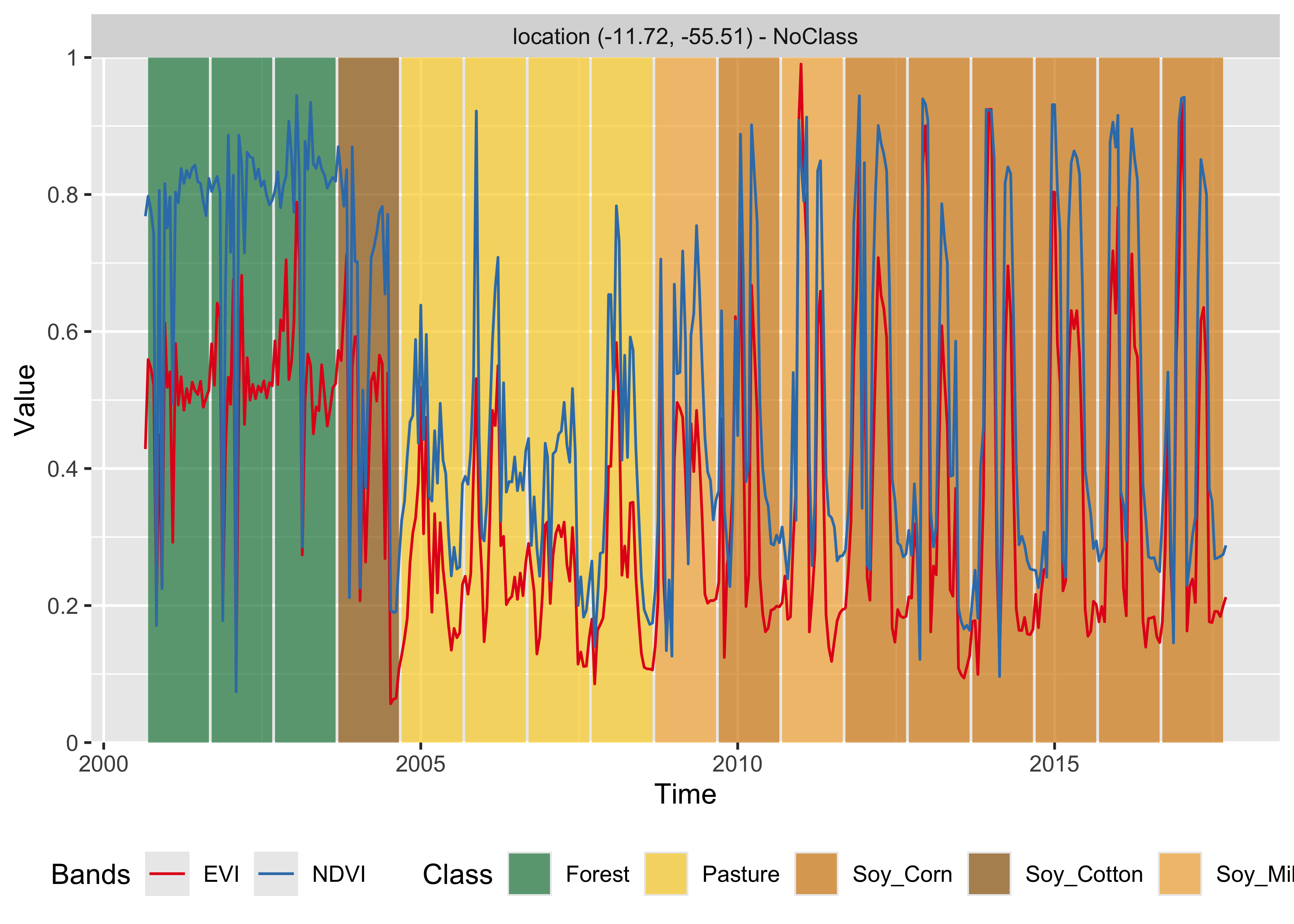

plot(point_class, bands = c("NDVI", "EVI"))
# Classify using TempCNN model and plot the result
point_class = sits_classify(point_mt_mod13q1, tempcnn_model)
plot(point_class, bands = ("NDVI", "EVI"))
The TempCNN model indicates the Soy_Cotton class as the most likely one in 2004. While this result is possibly wrong, it shows that the time series for 2004 is different from those of Forest and Pasture classes. One possible explanation is that there was forest degradation in 2004, leading to a signature that is a mix of forest and bare soil. In this case, including forest degradation samples could improve the training data. In our experience, TempCNN models are a reliable way of classifying image time series [18]. Recent work which compares different models also provides evidence that TempCNN models have satisfactory behavior, especially in the case of crop classes [19].
16.9 Residual 1D CNN networks (ResNet)
A residual 1D CNN network, also known as ResNet, is an extension of the standard 1D CNN architecture, adding residual connections between the layers. Residual connections allow the network to learn residual mappings, which are the difference between the input and output of a layer. By adding these residual connections, the network can learn to bypass specific layers and still capture essential features in the data.
The Residual Network (ResNet) for time series classification was proposed by Wang et al. [15], based on the idea of deep residual networks for 2D image recognition [20]. The ResNet architecture comprises 11 layers, with three blocks of three 1D CNN layers each (see Figure 16.14). Each block corresponds to a 1D CNN architecture. The output of each block is combined with a shortcut that links its output to its input, called a skip connection. The purpose of combining the input layer of each block with its output layer (after the convolutions) is to avoid the so-called “vanishing gradient problem”. This issue occurs in deep networks as the neural network’s weights are updated based on the partial derivative of the error function. If the gradient is too small, the weights will not be updated, stopping the training [21]. Skip connections aim to avoid vanishing gradients from occurring, allowing deep networks to be trained.
In sits, the Residual Network is implemented using sits_resnet(). The specific parameters are those proposed by Wang et al. [15], as implemented by Fawaz et al. [22], as follows:
| Parameter | Meaning |
|---|---|
blocks |
number of blocks and the size of filters in each block. By default, the model implements three blocks, the first with 64 filters and the others with 128 |
kernels |
size of the kernels of the three layers inside each block. Default is a decreasing size of (7, 5, 3)
|
The default values for the parameters are shown in the example below.
# load the torch library
library(torch)
# Set seed for reproducibility
set.seed(290356)
# Train using ResNet
resnet_model <- sits_train(
samples_matogrosso_mod13q1,
sits_resnet(
blocks = c(64, 128, 128),
kernels = c(7, 5, 3),
optimizer = torch::optim_adamw,
opt_hparams = list(lr = 0.001,
eps = 1e-08,
weight_decay = 1e-06),
lr_decay_epochs = 1,
lr_decay_rate = 0.95,
patience = 20,
epochs = 100,
batch_size = 64,
validation_split = 0.2,
verbose = FALSE)
)

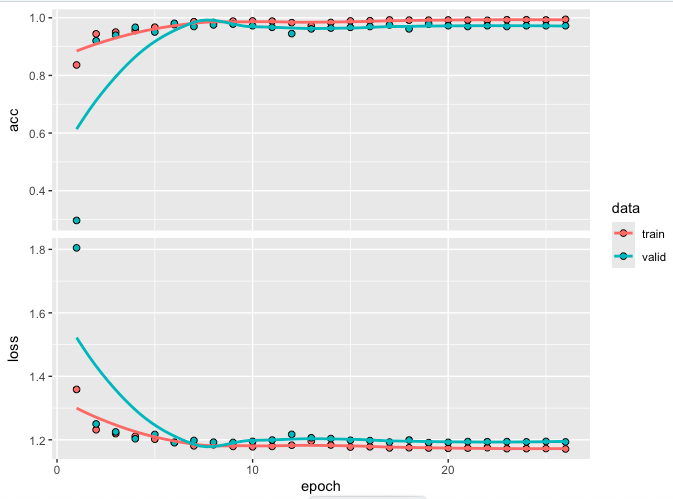

# Show training evolution
plot(resnet_model)
# Set seed for reproducibility
r_set_seed(290356)
# Train using ResNet
resnet_model = sits_train(
samples_matogrosso_mod13q1,
sits_resnet(
blocks = (64, 128, 128),
kernels = (7, 5, 3),
optimizer = "torch::optim_adamw",
opt_hparams = dict(lr = 0.001,
eps = 1e-08,
weight_decay = 1e-06),
lr_decay_epochs = 1,
lr_decay_rate = 0.95,
patience = 20,
epochs = 100,
batch_size = 64,
validation_split = 0.2,
verbose = False)
)

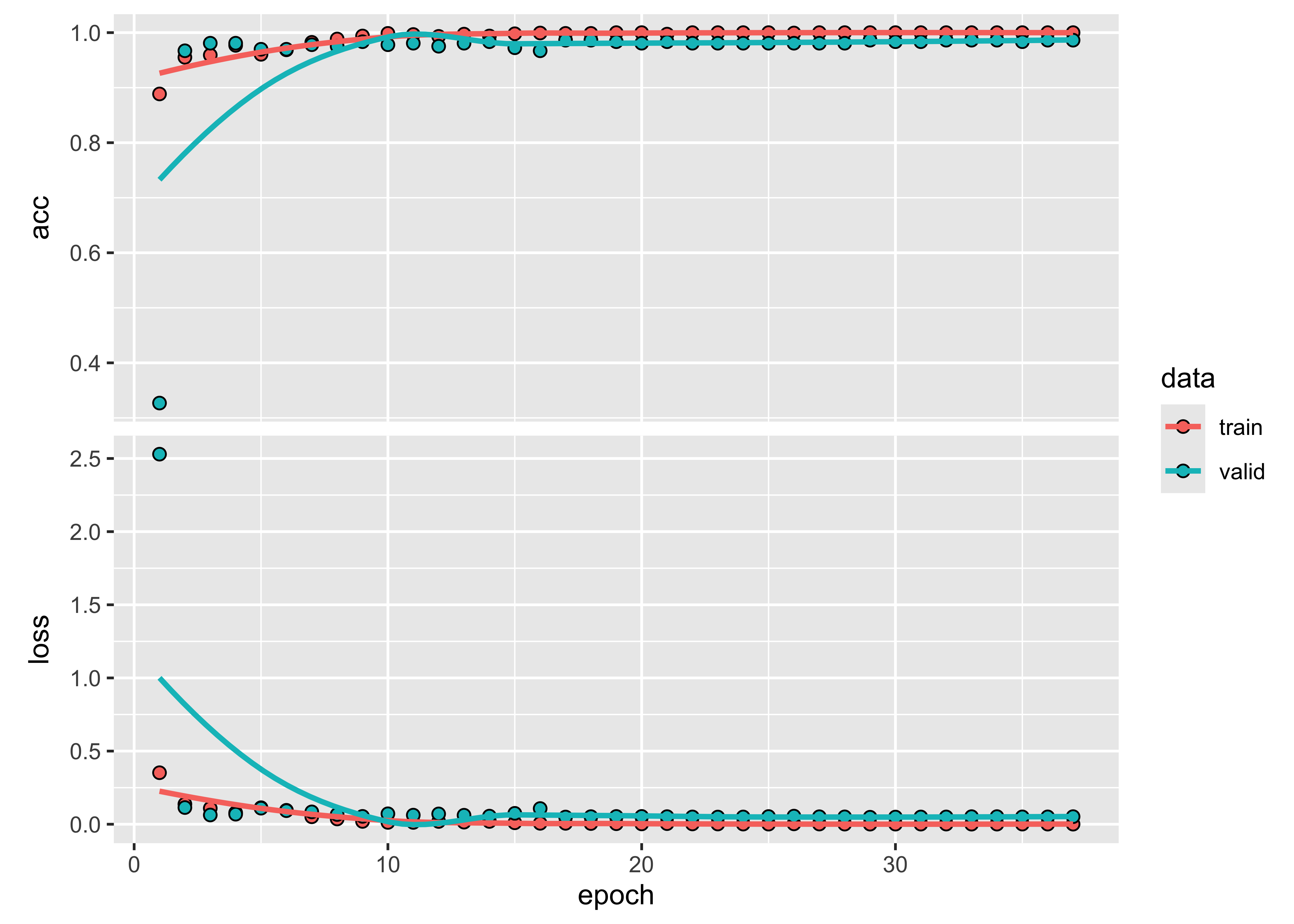

# Show training evolution
plot(resnet_model)
Using the ResNet model, we classify a 16-year time series.
# Classify a point using Resnet model
point_class <- sits_classify(point_mt_mod13q1, resnet_model)

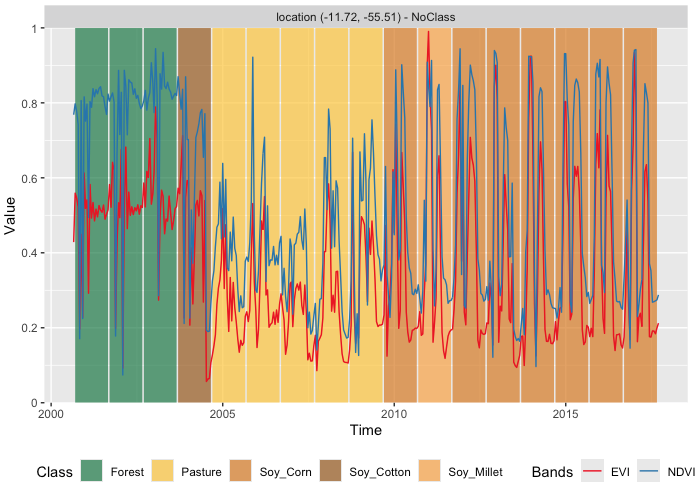

# Plot the result
plot(point_class, bands = c("NDVI", "EVI"))
# Classify using Resnet model
point_class = sits_classify(point_mt_mod13q1, resnet_model)
# Plot the result
plot(point_class, bands = ("NDVI", "EVI"))
In this case, the result of the ResNet model is quite similar to that of the TempCNN model. In the same way as TempCNN, the ResNet algorithm tends to be better at detecting agricultural or natural forest classes. When it comes to situation where transitions happen during the classification period, as in the case of the transition from forest to pasture in 2004, Random Forest models tend to be more efficient than TempCNN or ResNet.
16.10 Long Short-Term Memory Fully Convolutional Network (LSTM-FCN)
LSTM-FCN (Long Short-Term Memory Fully Convolutional Network) is a deep learning model designed for time series classification. It trains a two-branch deep learning model for classifying satellite image time series. One branch is a Long Short-Term Memory (LSTM) recurrent network; the other is a Fully Convolutional Network (FCN). The two branches read the same time series in complementary ways, and their outputs are merged before a final classification layer produces per-class probabilities [23].

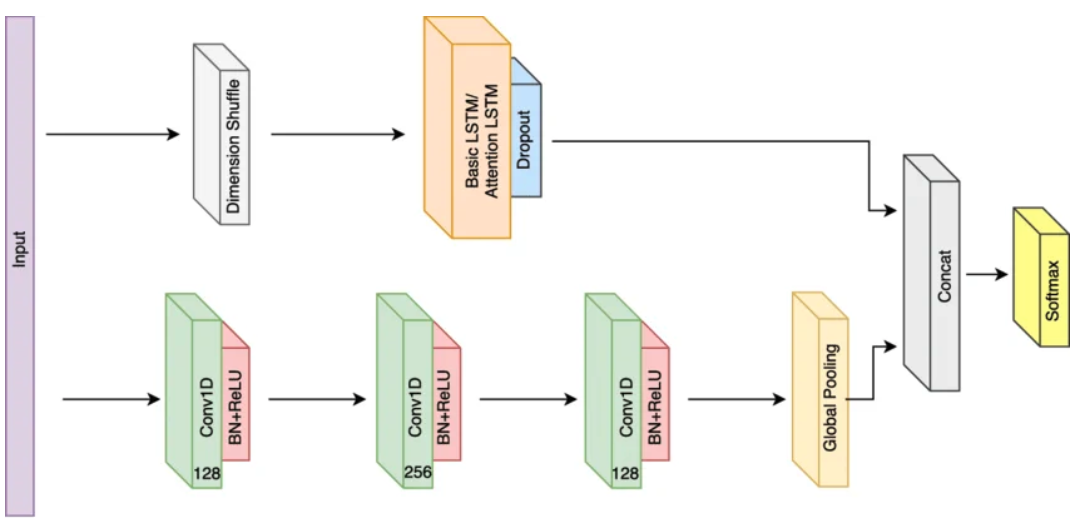

The architecture combines two parallel blocks. An FCN block applies multiple temporal convolutional layers with batch normalization and ReLU activation to extract local features without needing pooling layers. An LSTM Block processes the input sequence through an LSTM cell to capture long-range temporal dependencies. The outputs from the convolutional blocks and the LSTM block are concatenated before passing to a final softmax classification layer.
In simple term, sits_lstm_fcn() hands this time series to two experts at the same time:
The LSTM expert reads the series like a story, from beginning to end, remembering what happened earlier to make sense of what comes later. It is good at capturing the order and timing of events (for example, “greenness peaked late in the season”).
The FCN expert slides small “shape detectors” across the series, looking for characteristic local patterns — a sudden rise, a dip, a plateau — regardless of exactly when they occur. It is good at recognizing distinctive shapes.
A third component acts as a referee: it combines both experts’ impressions and outputs a probability for each possible land-cover class. During training, the model is shown many labeled examples and gradually adjusts both experts and the referee so that its answers match the known labels. Once trained, it can label every pixel of a data cube. The overall design is shown in Figure 16.17.
The function sits_lstm_fcn() implements the model, with the following parameters:
| Parameter | Meaning |
|---|---|
cnn_layers |
1D-CNN layers and the size of the filters applied at each layer. |
cnn_kernels |
size of the 1D convolutional kernels. |
cnn_dropout_rates |
dropout rates for the 1D convolutional filters. |
lstm_width |
number of neurons in the LSTM hidden layer. |
lstm_dropout |
dropout rate of the LSTM layer. |
# Set seed for reproducibility
set.seed(290356)
library(torch)
# Train using LSTM-FCN
lstm_fcn_model <- sits_train(
samples_matogrosso_mod13q1,
sits_lstm_fcn(
cnn_layers = c(64, 64, 64),
cnn_kernels = c(3, 3, 3),
cnn_dropout_rates = c(0.3, 0.3, 0.3),
lstm_width = 8,
lstm_dropout = 0.8,
optimizer = torch::optim_adamw,
opt_hparams = list(lr = 5e-04,
eps = 1e-08,
weight_decay = 1e-06),
lr_decay_epochs = 1,
lr_decay_rate = 0.95,
patience = 20,
epochs = 150,
batch_size = 64,
validation_split = 0.2,
verbose = FALSE)
)

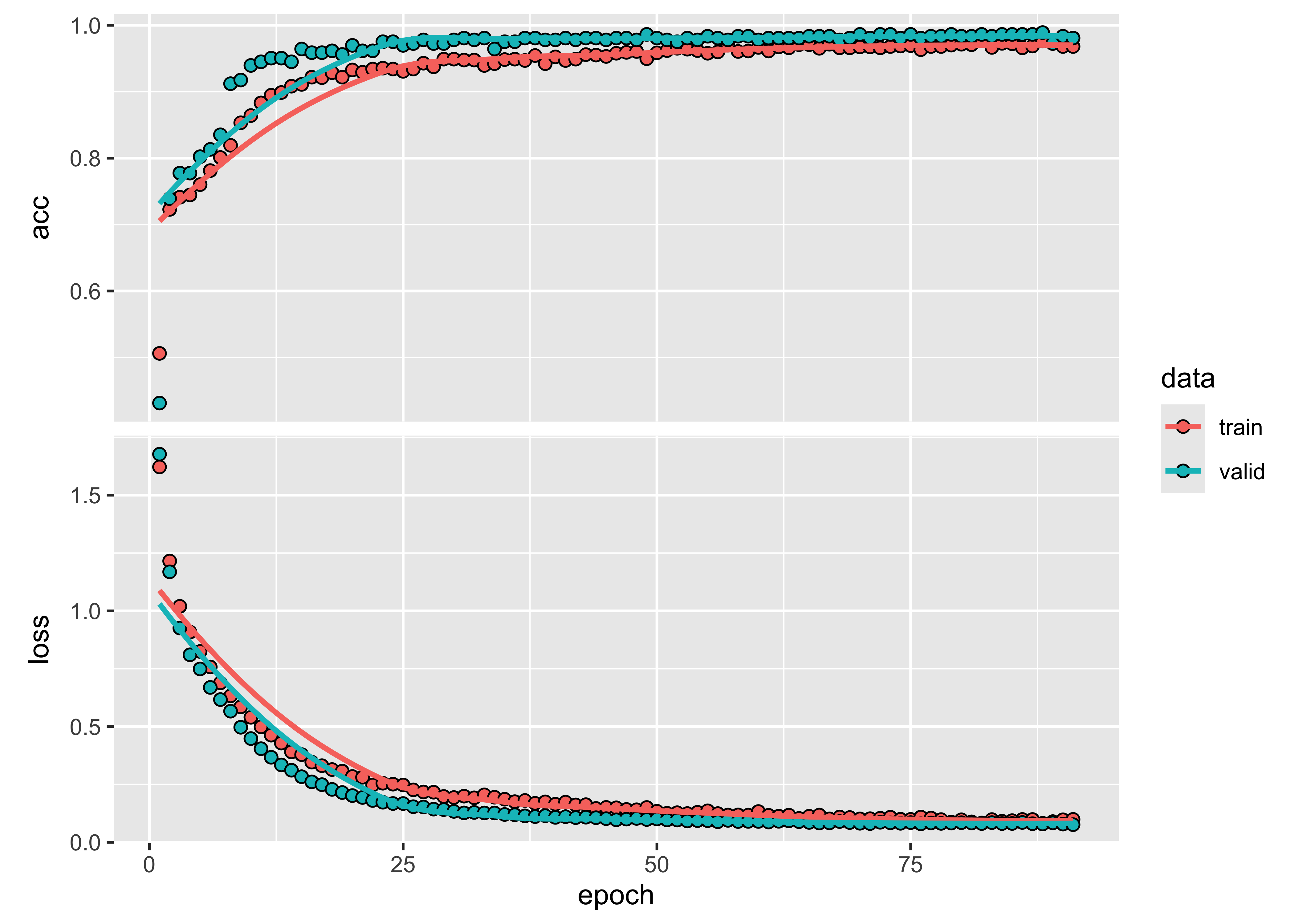

# Show training evolution
plot(lstm_fcn_model)
r_set_seed(290356)
# Train using LSTM-FCN
lstm_fcn_model = sits_train(
samples_matogrosso_mod13q1,
sits_lstm_fcn(
cnn_layers = (64, 64, 64),
cnn_kernels = (3, 3, 3),
cnn_dropout_rates = (0.3, 0.3, 0.3),
lstm_width = 8,
lstm_dropout = 0.8,
optimizer = "torch::optim_adamw",
opt_hparams = dict(lr = 5e-04,
eps = 1e-08,
weight_decay = 1e-06),
lr_decay_epochs = 1,
lr_decay_rate = 0.95,
patience = 20,
epochs = 150,
batch_size = 64,
validation_split = 0.2,
verbose = False))
# Show training evolution
plot(lstm_fcn_model)
Using the LSTM-FCN model, we classify a 16-year time series.

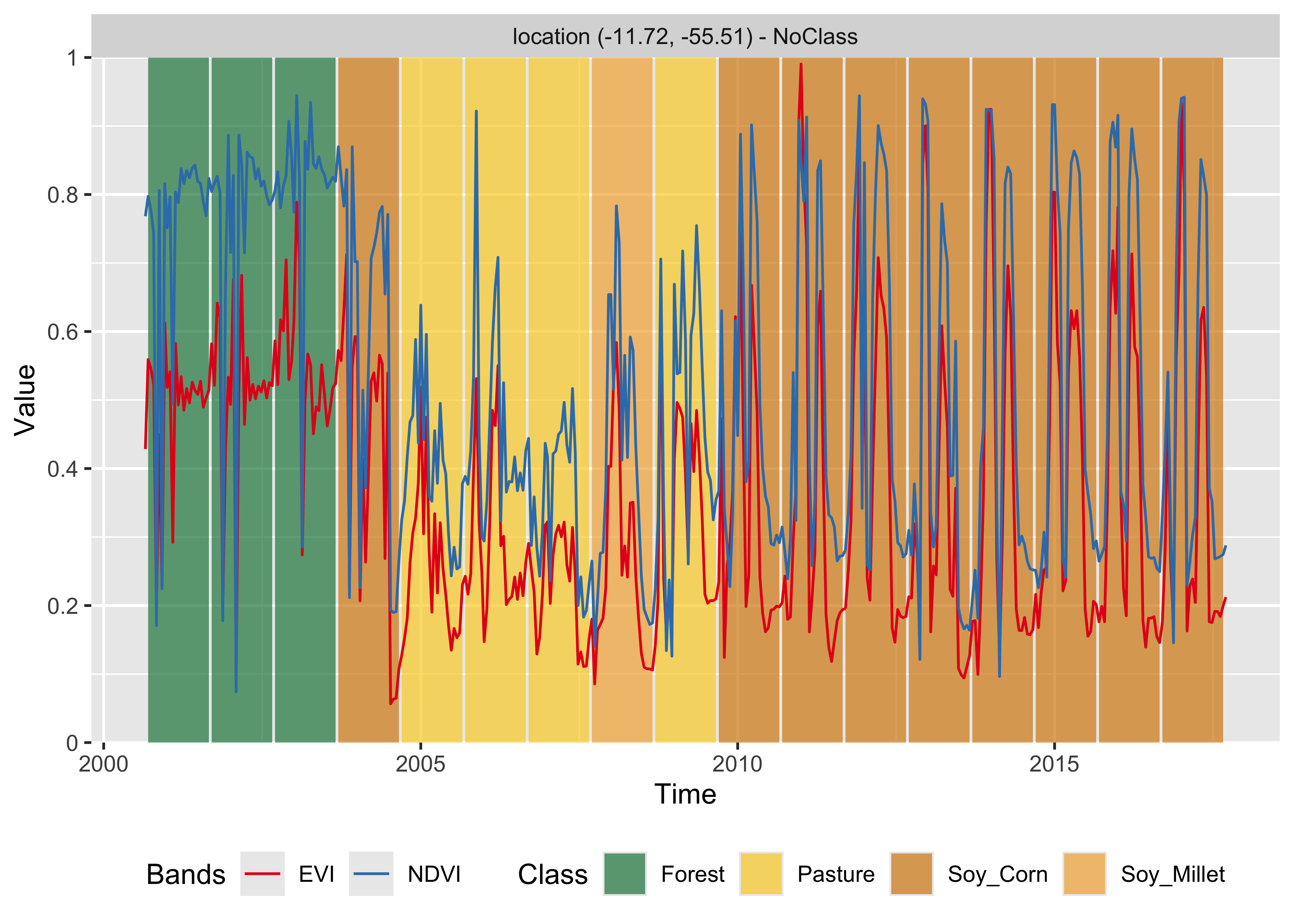

# Classify using TempCNN model and plot the result
point_class <- sits_classify(point_mt_mod13q1, lstm_fcn_model)
plot(point_class, bands = c("NDVI", "EVI"))
# Classify using TempCNN model and plot the result
point_class = sits_classify(point_mt_mod13q1, lstm_fcn_model)
plot(point_class, bands = ("NDVI", "EVI"))
16.11 Light Temporal Attention Encoder (LightTAE)
Attention mechanisms allow deep learning models to weight the elements of an input according to their relevance at each processing step, computing a weighted sum that emphasises the most informative parts of the signal. Introduced for tasks such as machine translation, image captioning, and speech recognition, they are now the dominant architecture for sequential data.
The motivation is that inputs are not equally informative. To translate the sentence “Look at all the lonely people”, a system must relate “look” and “people” if the translation is to preserve the sentence’s meaning. Transformers, a specific class of attention models, capture such dependencies between input and output sequences [24]. Like other neural networks, they pair an encoder that maps textual inputs to numerical vectors with a decoder that produces outputs, but differ in two respects. Positional encoding assigns an index to each input element, preserving relative order throughout training and inference. Self-attention compares every word in a sentence with all others, including itself, thereby learning contextual relations. This design underpins large language models such as GPT-4 [25].
Garnot et al. [26] and Rußwurm and Körner [19] extend attention to satellite image time series. Self-attention learns which temporal observations best discriminate land classes: for crops, the onset, peak, and end of the growing season; for deforestation, the dates of forest clearing.
Garnot and co-authors also proposed the Lightweight Temporal Self-Attention Encoder (LTAE) [27], which the authors claim can achieve high classification accuracy with fewer parameters compared to other neural network models. It is a good choice for applications where computational resources are limited. Start from ordinary self-attention. Given a satellite image time series — one feature vector per acquisition date — classic self-attention has every date query every other date, producing one output vector per date, which you then have to pool into a single vector before classifying. That is a lot of computation for a summary you throw most of it away. LTAE’s insight is that for classification you only ever need one summary vector for the whole sequence. So it removes the part that computes queries from the data.

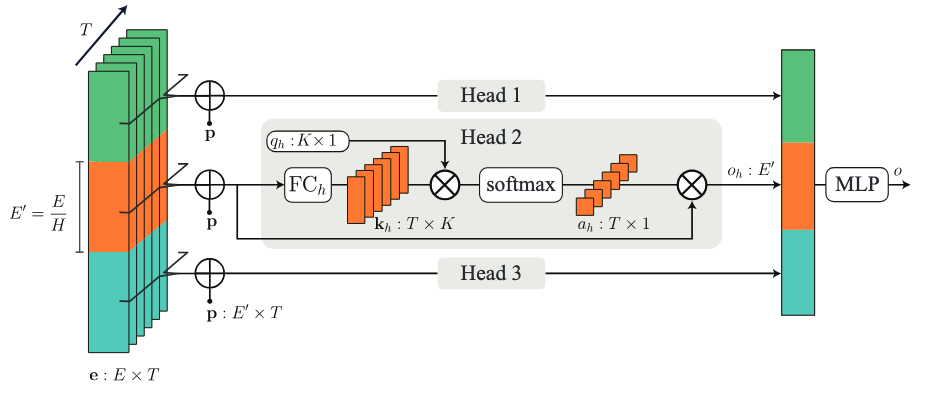

As shown in Figure 16.20, the components of the LTAE model are:
A single learned “master query” per head: Instead of each date asking a question, each attention head owns one fixed question, learned during training and identical for every parcel. Think of it as “when in this series does the thing I care about happen?” — one head may learn to look for the green-up of a crop, another for the harvest, another for an abrupt drop in reflectance.
Each date answers with a key: A small linear layer turns each date’s feature vector into a key. The dot product between the master query and each key becomes an attention score; a softmax over dates turns those scores into weights summing to one.
The output is a weighted average of the dates themselves: The values are the input embeddings directly — no value projection — so the head’s output is literally the sequence, seen through the dates this head considers relevant.
Channel grouping instead of full projections: The E input channels are split into H non-overlapping groups of E/H, one per head. Each head sees only its slice, so heads are cheap and are forced to specialize on different features rather than duplicating each other.
Time is encoded as days, not positions: The positional encoding uses the number of days elapsed since the start of the series.
Concatenate and classify: The H head outputs are concatenated back to size E and passed through an MLP to the desired output dimension.
The payoff is extreme parsimony: a 9k-parameter LTAE beats a 110k-parameter TAE, a 700k-parameter TempCNN, and a 3M-parameter GRU on the Sentinel2-Agri crop dataset, reaching 94.3% overall accuracy and 51.7 mIoU with roughly a tenth of the computation. The attention weights are also directly readable — they tell you which dates the model used to make each decision.
The sits_lighttae() function implements this algorithm. The most important parameter to be set is the learning rate lr. Values ranging from 0.001 to 0.005 should produce good results. See also the section below on model tuning. There are no specific parameters for this function. It only uses the parameters common to the sits deep learning methods.
# Set seed
set.seed(290356)
# Train a machine learning model using LightTAE
ltae_model <- sits_train(
samples_matogrosso_mod13q1,
sits_lighttae(
epochs = 150,
batch_size = 64,
optimizer = torch::optim_adamw,
opt_hparams = list(
lr = 0.0005,
eps = 1e-08,
weight_decay = 7e-04
),
lr_decay_epochs = 50L,
lr_decay_rate = 1.0,
patience = 20L,
seed = 290356,
validation_split = 0.2)
)

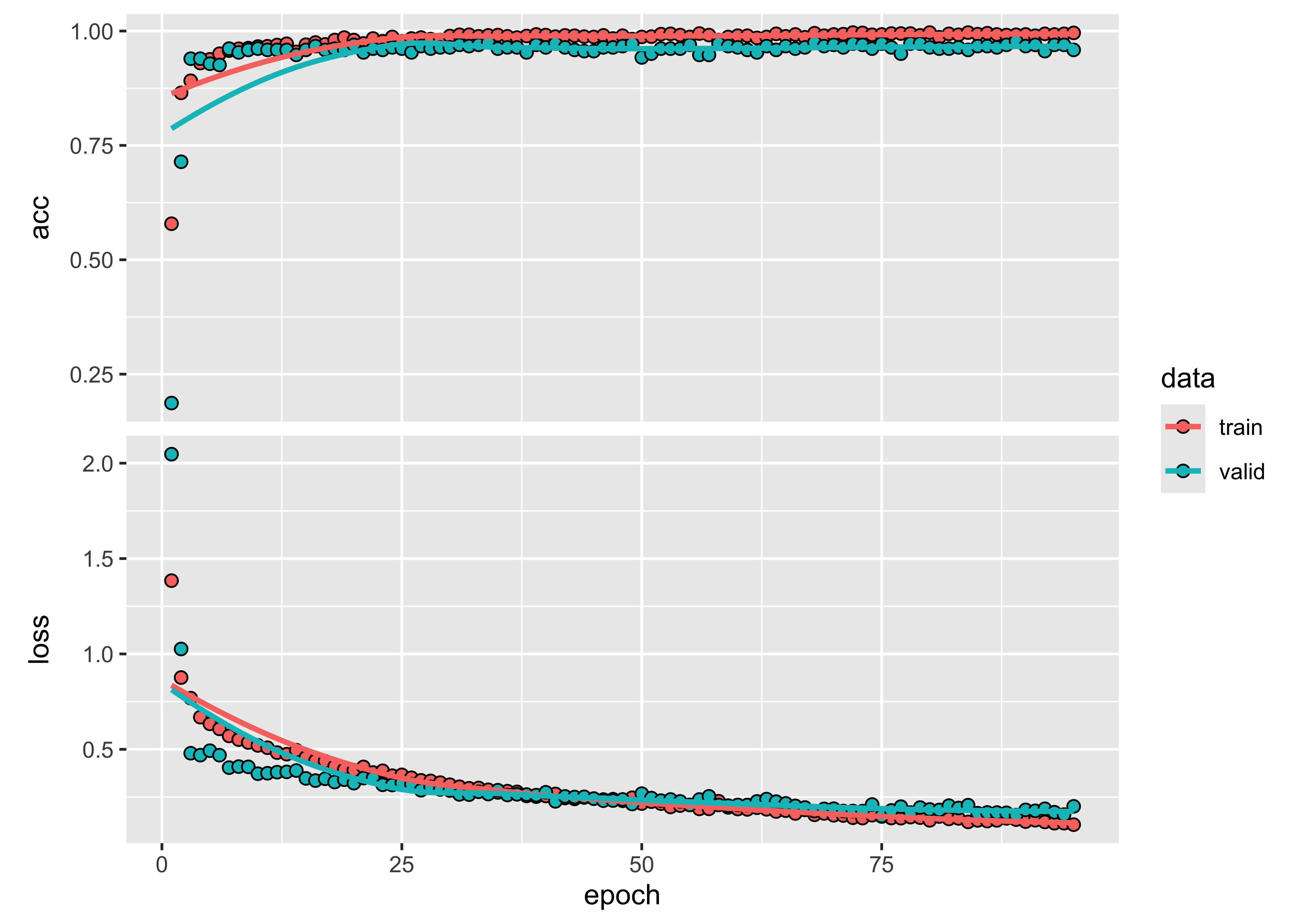

# Show training evolution
plot(ltae_model)
# Set seed
r_set_seed(290356)
# Train a machine learning model using LightTAE
ltae_model = sits_train(
samples_matogrosso_mod13q1,
sits_lighttae(
epochs = 150,
batch_size = 64,
optimizer = "torch::optim_adamw",
opt_hparams = dict(
lr = 0.0005,
eps = 1e-08,
weight_decay = 7e-04
),
lr_decay_epochs = 50L,
lr_decay_rate = 1.0,
patience = 20L,
seed = 290356,
validation_split = 0.2)
)
# Show training evolution
plot(ltae_model)

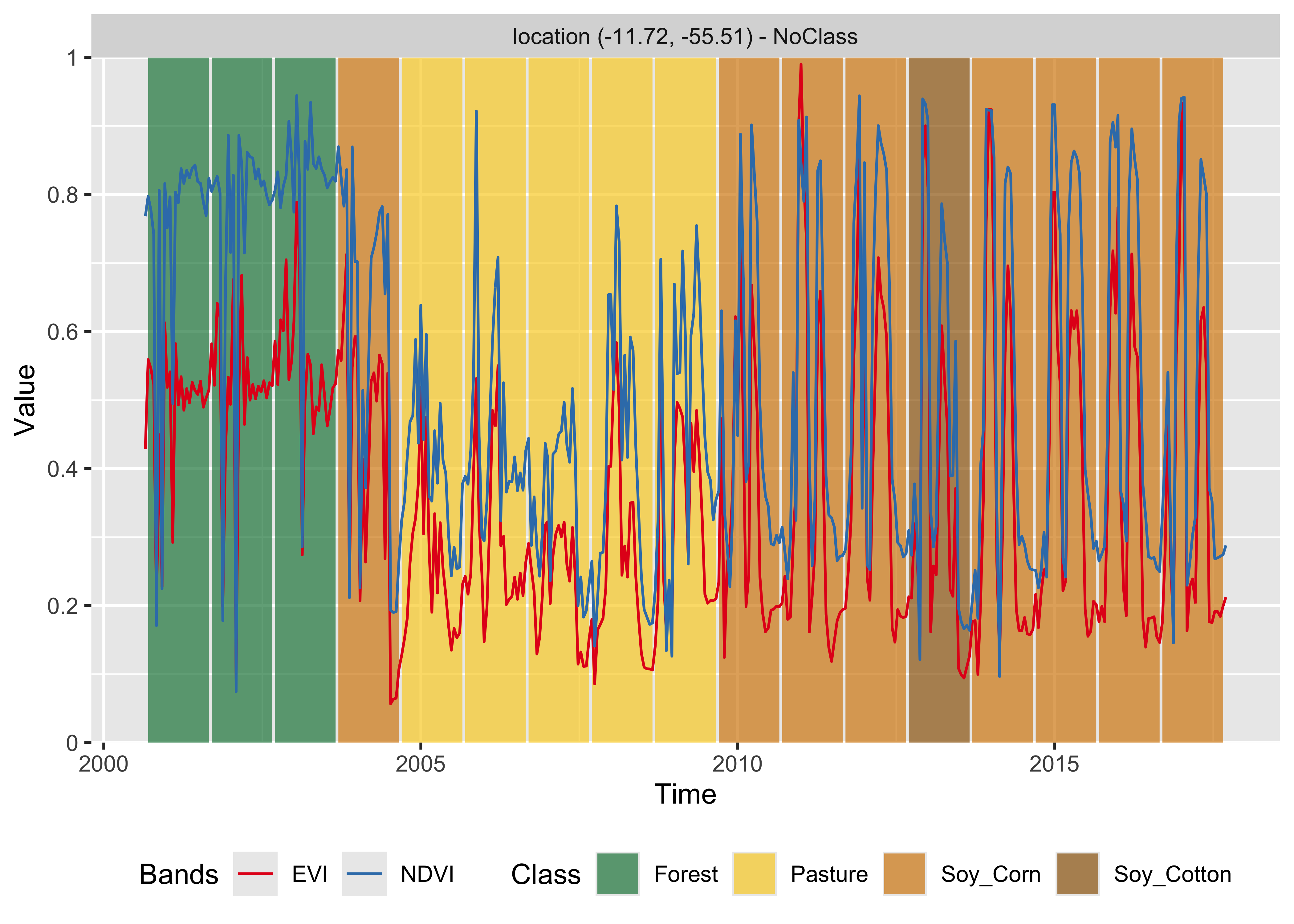

Then, we classify a 16-year time series using the LightTAE model.
point_class <- sits_classify(point_mt_mod13q1, ltae_model)
plot(point_class, bands = c("NDVI", "EVI"))
# Classify using LTAE model and plot the result

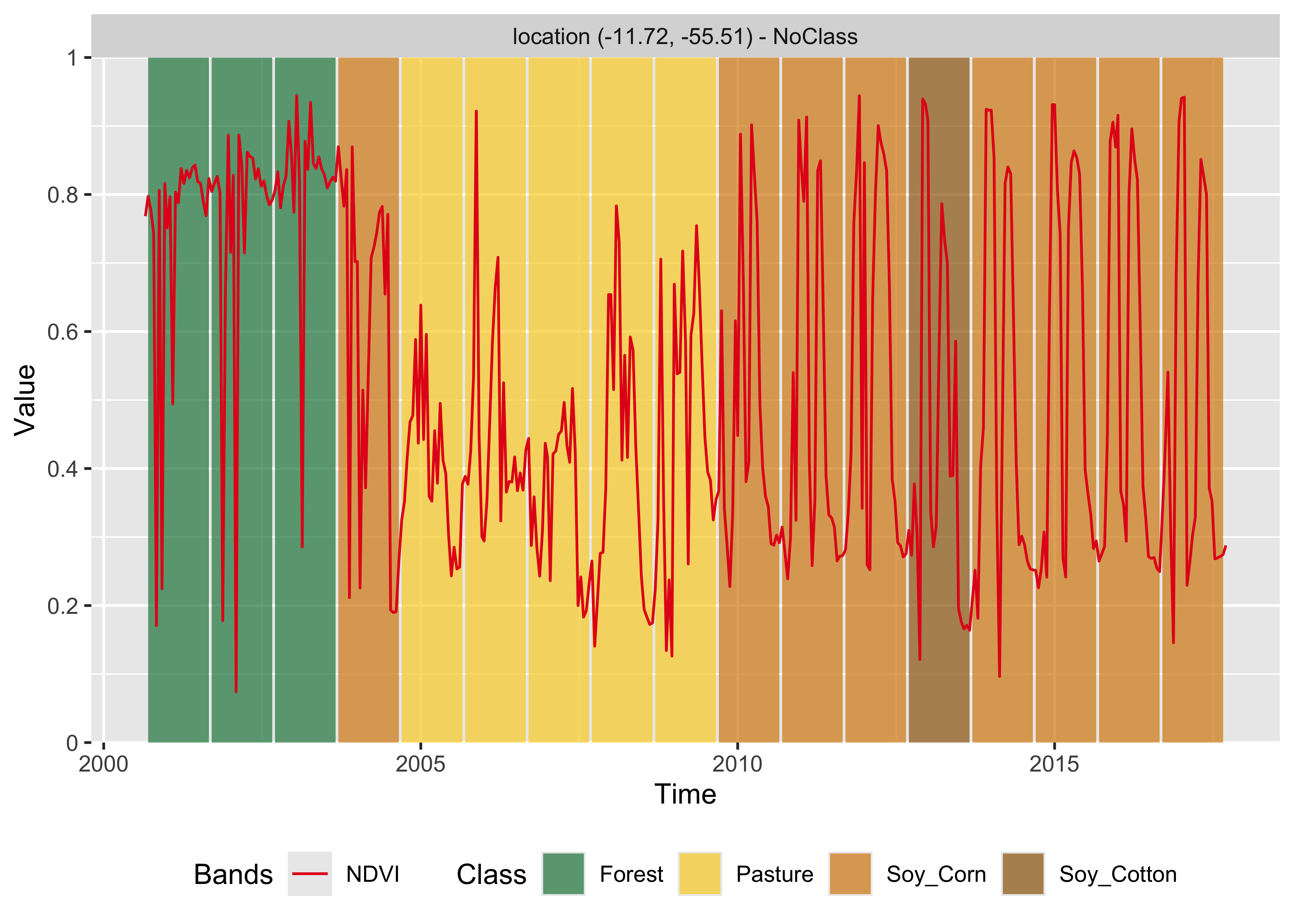

point_class = sits_classify(point_mt_mod13q1, ltae_model)
plot(point_class, bands = ("NDVI", "EVI"))
The behaviour of sits_lighttae() is similar to that of sits_tempcnn(). It points out the possible need for more classes and training data to better represent the transition period between 2004 and 2010. One possibility is that the training data associated with the Pasture class is only consistent with the time series between the years 2005 to 2008. However, the transition from Forest to Pasture in 2004 and from Pasture to Agriculture in 2009-2010 is subject to uncertainty since the classifiers do not agree on the resulting classes. In general, deep learning temporal-aware models are more sensitive to class variability than Random Forest and extreme gradient boosters.
16.12 Summary
In this chapter, we present a description of the machine learning algorithms available in sits. The basic distinction is between time-sensitive algorithms such as LightTAE and TempCNN and those that do not consider the temporal order of values, such as Random Forest. In practice, we suggest that users take Random Forest as their baseline and then use LightTAE or TempCNN to try to improve classification accuracy.
